Roundness Evaluation of a Deformed Hole
Application ID: 140631
During manufacturing or in-service use, the geometric shape of structural components can deviate from their intended design. For example, a hole may lose its perfectly circular form, making it important to measure and control this deviation. The process of quantifying such deviations is known as roundness (or circularity) error evaluation.

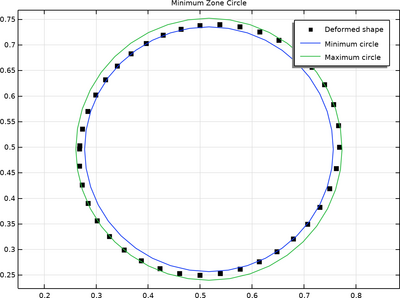

This model demonstrates various methods for estimating the radius and center of circles that best approximate a deformed hole.
