Two-Phase Flow Modeling of Copper Electrowinning Using Bubbly Flow
Application ID: 75111

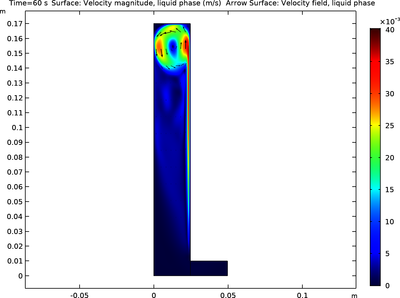

Copper electrowinning is the process of copper extraction from an electrolyte solution and its deposition at the cathode surface, by passing an external current through the electrolytic cell and using an insoluble anode. During the process, oxygen bubbles are generated at the anode surface leading to a large recirculation zone between anode and cathode surfaces, which requires two-phase flow modeling.
In the present model, charge and mass transports of ionic species are modeled using Tertiary Current Distribution, Nernst-Planck interface and the two-phase flow generated due to oxygen gas evolution at the anode surface is modeled using Bubbly Flow, Laminar Flow interface. The effect of two-phase flow on copper electrodeposition is demonstrated in the model.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- CFD Module and
- either the Corrosion Module, Electrochemistry Module, or Electrodeposition Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
