Standing Contact Fatigue

Application ID: 35021

A standing contact fatigue test is a procedure used for testing crack growth on the subsurface level. In such a test, a spherical object is pressed against the tested materials and cycled between a high and low compressive load. No translational movement between the two occurs.

After a period of time, surface cracks can be observed on the flat object's surface, while further analysis of the component reveals multiple cracks that are present on the subsurface level. The surface is originally hardened, which changes the material properties of the surface in comparison to the material properties of the rest of the object. This surface hardening procedure affects the material strength, hardening, and fatigue properties of the object, while residual stresses are also introduced throughout the depth of the object.

Three distinct layers of fatigue-affected material can be observed. Closest to the surface, the specimen has a strong case layer, while in the core, the material has unaffected material properties. In between these layers, there is a transition layer where both the material properties and the residual stress have strong gradients. All of these effects are incorporated in the simulation of the load cycle.

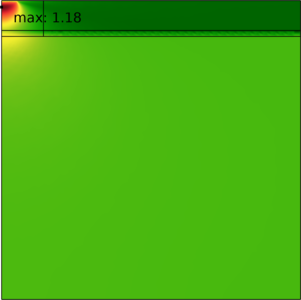

In this example, fatigue is simulated using the Dang-Van model. The results show stresses that are a combination of the residual state from the hardening process and the structural response to the plastic deformation arising from the indentation of the spherical object. Plasticity occurs only during the first load cycle, while subsequent load cycles are elastic in nature. The second load cycle can therefore be seen as a stable load cycle and is used in the subsequent fatigue study.
