Si Solar Cell with Ray Optics
Application ID: 36201

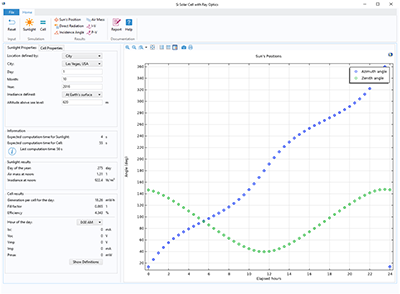

The Si Solar Cell with Ray Optics app combines the Ray Optics Module and the Semiconductor Module to illustrate the operation of a silicon solar cell for a specific date and location. The Ray Optics Module computes the average illumination for a date and location that are chosen by the app's user. Then, the Semiconductor Module computes the normalized output characteristics of the solar cell with design parameters specified by the user.
The normalized output characteristics are multiplied by the computed average illumination to obtain the output characteristics of the cell at the specified date and location, assuming a simple linear relationship between the output and illumination. The user can then calculate the solar cell's efficiency and the amount of electricity generation over the course of the day.
The underlying model consists of a 1D silicon PN junction with carrier generation and Shockley-Read-Hall recombination. The grounded anode is modeled as a thin ohmic contact deposited on an emitter (n-doped region). Similarly, the cathode is modeled as an ideal ohmic contact deposited on the base side (p-doped region) and connected to an external circuit.
