Shape Optimization of a Cascaded Rectangular Cavity Filter
Application ID: 149131

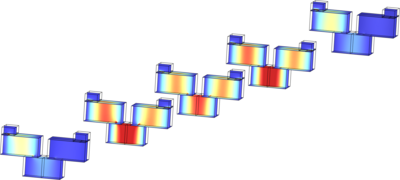

Cascaded cavity filters provide much better bandpass filter performance than single cavity filters. This example demonstrate how to use shape optimization to optimize three rectangular cavity filters coupled via slots. The calculated S-parameters show excellent out-of-band rejection.
