Rotor Bearing System Simulator
Application ID: 45541
This app demonstrates the following:
- Navigation system using toggle buttons in the ribbon and Back/Forward buttons in the settings window
- Selecting predefined or user-defined materials
- Using a table for input of geometry objects

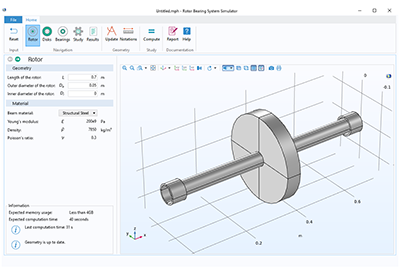

The app simulates a rotor bearing system consisting of disks and bearings mounted on a rotating shaft. An eigenfrequency analysis is performed for a range of angular speeds, to identify critical speeds of the system.
An app of this kind is useful at an early design stage where design modifications can be made to move critical speeds away from the operating speed of the system.
Results include whirl modes, a Campbell plot, and a list of critical speeds.
For more details about the app, see this blog post: "Analyzing Critical Speeds with the Rotor Bearing System Simulator"
