Nonlinear Ferromagnetic Diaphragm
Application ID: 144001

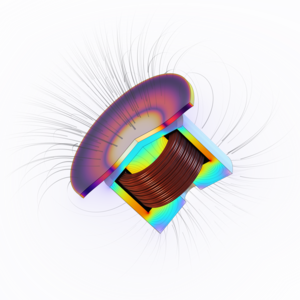

A magnetic diaphragm is a flexible, thin structure that interacts with magnetic fields to perform mechanical or sensing functions. When subjected to an external magnetic field, the diaphragm deforms due to magnetomechanical interactions, converting magnetic energy into mechanical displacement or, conversely, mechanical deformation into changes in the magnetic field distribution. In this model, you will study the magnetomechanics of a magnetic diaphragm using the Magnetomechanics, Shell multiphysics interface. This interface combines the Shell and Magnetic Fields physics with moving mesh functionality, allowing simulation of the coupled mechanical deformation and magnetic field interactions for thin, flexible structures.
