Generator in 3D
Application ID: 462

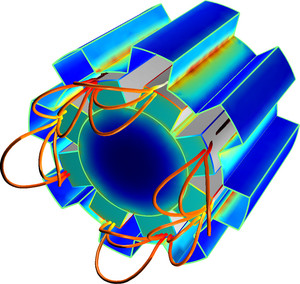

This model is a static 3D simulation of a generator having a rotor with permanent magnets. The center of the rotor consists of annealed medium carbon steel, which is a nonlinear ferromagnetic material that is saturated at high magnetic flux densities.
The core is surrounded by several blocks of a permanent magnet made of samarium and cobalt, creating a strong magnetic field. The stator is made of the same nonlinear material as the center of the rotor, confining the field in closed loops through the winding.
The model calculates the static magnetic fields inside and around the generator, where the nonlinearity of the magnetic material is modeled using an interpolation function.
This model example illustrates applications of this type that would nominally be built using the following products:AC/DC Module
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
