Hexagonal Grating (Wave Optics)

Application ID: 22331

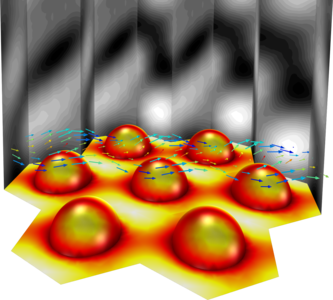

A plane wave is incident on a reflecting hexagonal grating. The grating cell consists of a protruding semisphere. The scattering coefficients for the different diffraction orders are calculated for a few different wavelengths.

This model example illustrates applications of this type that would nominally be built using the following products:
