Eigenvalue Analysis of a Turbocharger Rotor
Application ID: 143661

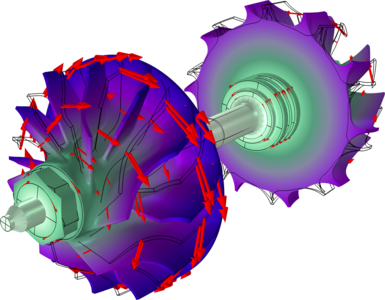

In this tutorial model, an eigenvalue analysis of a turbocharger rotor is performed. The rotor is analyzed in an unconstrained configuration, also commonly known as free–free conditions. A rotor like this is usually intended for high-speed applications, but here the analysis is performed at standstill.
This example also illustrates how a mesh on NASTRAN format can be imported in COMSOL Multiphysics.
