Coupled-Line Bandpass Filter
Application ID: 12012

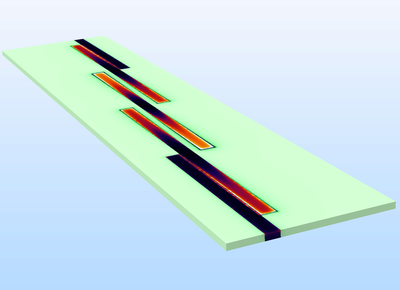

It is possible to realize a narrowband bandpass filter using cascaded microstrip coupled lines. In this example, a design composed of cascaded microstrip lines, each approximately a half wave length in size at the resonant frequency, is analyzed. The model is solved for the S-parameters and a very narrow bandwidth is observed.
