Creating a time-domain plot from a frequency domain study

Posted 25 feb 2015, 02:55 GMT-5 7 Replies

Stephen Holland
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I am doing frequency-domain analysis and want to generate a synthetic time-domain plot from the result.

i.e. I do a (single frequency) analysis and get a resulting (in general complex) displacement amplitude A from a probe.

Now I want to generate a time-domain plot of A*exp(i*2*pi*freq*t) based on the study result. When I try to do this, since the study is frequency domain, t is undefined.

I've tried creating a second, time-domain study based on a different physics and referencing the frequency domain solution. That creates a 't' I can plot on the horizontal axis, and imports the dependent variables (i.e. A) from the frequency -dependent study. But now 'freq' is undefined, because while the dependent variables were imported from the frequency dependent study I didn't see an option to import the independent variable (freq).

Maybe I'm going about this all wrong. I could obviously plot this up easily in Matlab, but it would be nice if the COMSOL model were self-contained.

(Have an .mph file to attach but I get a 'File Extension Error' dialog when I try to attach it to this posting).
7 Replies Last Post 4 ago 2016, 15:18 GMT-4
COMSOL Moderator

Hello Stephen Holland

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

H. Mohamed
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 lug 2015, 11:48 GMT-4
Hi Stephen, Did you find a solution to this problem or not. I face a similar problem here.
I am just the opposite case. I am having a time dependent function and I need the frequency domain response.

Please advise.

Hossam
Hi Stephen, Did you find a solution to this problem or not. I face a similar problem here. I am just the opposite case. I am having a time dependent function and I need the frequency domain response. Please advise. Hossam
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 lug 2015, 12:55 GMT-4

Hi,

in Stephen's case with a single frequency: he can use the phase as x-axis parameter and scale accordingly.
In the inverse case, Hossam, you can choose the frequency spectrum instead of time in the x-axis data selection.

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Hi, in Stephen's case with a single frequency: he can use the phase as x-axis parameter and scale accordingly. In the inverse case, Hossam, you can choose the frequency spectrum instead of time in the x-axis data selection. Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
Nadia Aloui
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 24 nov 2015, 04:53 GMT-5
Dear Edgar,

Can you please provide me more details about the transformation form frequency plot to time plot. In fact, it is not clear to me how using the phase as x-axis generates a time domain plot. It is equivalent to multiply the solution by exp(j*phase*pi/180); phase [rad]. Isn't it?
We should not multiply the solution by exp(j*2*pi*frequency) to generate a time-domain plot.
Thank you in advance.

Best regards,
Nadia
Dear Edgar, Can you please provide me more details about the transformation form frequency plot to time plot. In fact, it is not clear to me how using the phase as x-axis generates a time domain plot. It is equivalent to multiply the solution by exp(j*phase*pi/180); phase [rad]. Isn't it? We should not multiply the solution by exp(j*2*pi*frequency) to generate a time-domain plot. Thank you in advance. Best regards, Nadia
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 24 nov 2015, 08:13 GMT-5
Hi,

By using a 'Frequency to Time FFT' study step you can generate a time history from frequency domain results, even for several frequencies.

Look at the third study in this example:

www.comsol.com/model/vibration-analysis-of-a-thick-beam-20301

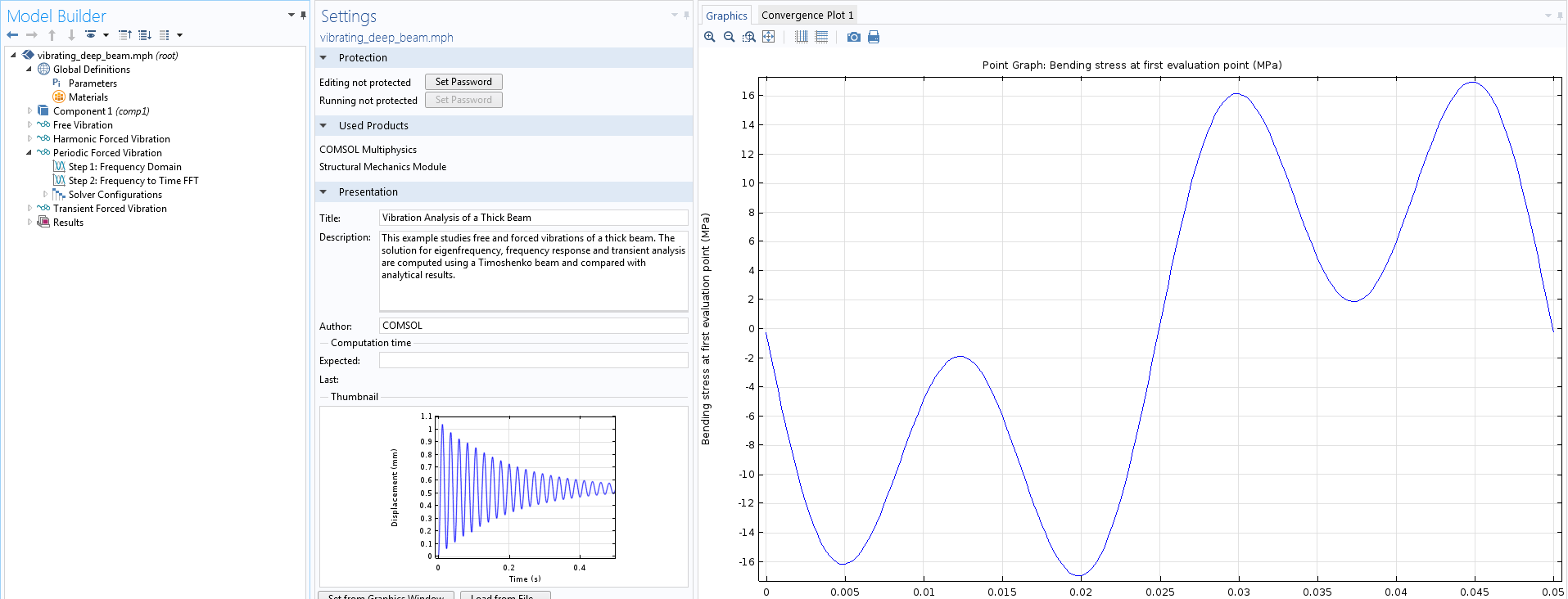

A plot from that model is attached.

Regards,
Henrik
Hi, By using a 'Frequency to Time FFT' study step you can generate a time history from frequency domain results, even for several frequencies. Look at the third study in this example: http://www.comsol.com/model/vibration-analysis-of-a-thick-beam-20301 A plot from that model is attached. Regards, Henrik

Attachments:

Nadia Aloui
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 26 nov 2015, 06:11 GMT-5

Thank you for your reply.

Regards,
Nadia
Thank you for your reply. Regards, Nadia
M.A.
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 24 giu 2016, 19:09 GMT-4
Dear Edgar,

I am relatively new to comsol, and it sounds like doing this should be trivial, but I cannot figure out how to plot some result in frequency domain (AC/DC module in my case, but it should be general post-processing tool) with the "phase" in the x-axis.

Is there a direct simple way to make the phase the variable in the x-axis of the plot of a frequency domain result, without resorting to FFT study step, especially that I'm interested in a single frequency analysis?

And is there an example in the application library to do it for a frequency domain study?

Best regards,
Majd

Dear Edgar, I am relatively new to comsol, and it sounds like doing this should be trivial, but I cannot figure out how to plot some result in frequency domain (AC/DC module in my case, but it should be general post-processing tool) with the "phase" in the x-axis. Is there a direct simple way to make the phase the variable in the x-axis of the plot of a frequency domain result, without resorting to FFT study step, especially that I'm interested in a single frequency analysis? And is there an example in the application library to do it for a frequency domain study? Best regards, Majd
Rishad Arfin
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 4 ago 2016, 15:18 GMT-4
Hello,

I am kind of new in Comsol, so I am facing difficulties in solving this problem. It might be a very silly problem though.

Problem: I have a defined antenna structure in the attachment fig.1 . I have simulated the e-field distribution on the surface. However, now I would like to see how the e-field changes with time along that path (red line) in the structure? So, it is basically a 1D plot of time-varying e-field along that path (red line).

My study type is frequency domain in this case. Please help me with this.
Hello, I am kind of new in Comsol, so I am facing difficulties in solving this problem. It might be a very silly problem though. Problem: I have a defined antenna structure in the attachment fig.1 . I have simulated the e-field distribution on the surface. However, now I would like to see how the e-field changes with time along that path (red line) in the structure? So, it is basically a 1D plot of time-varying e-field along that path (red line). My study type is frequency domain in this case. Please help me with this.
