Cylinder flow problem, the results do not match the paper

Please login with a confirmed email address before reporting spam

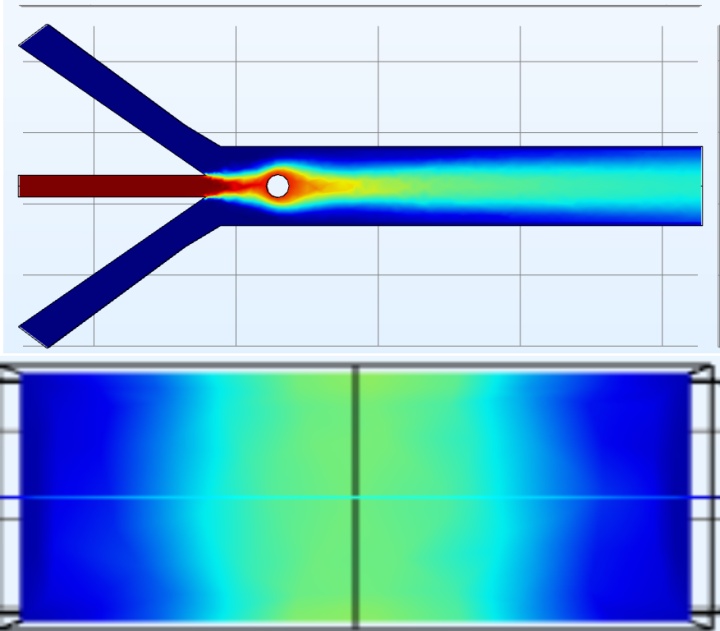

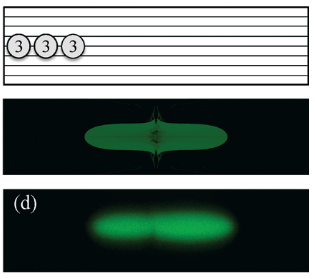

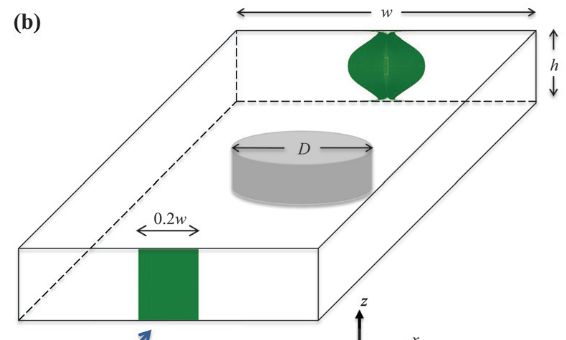

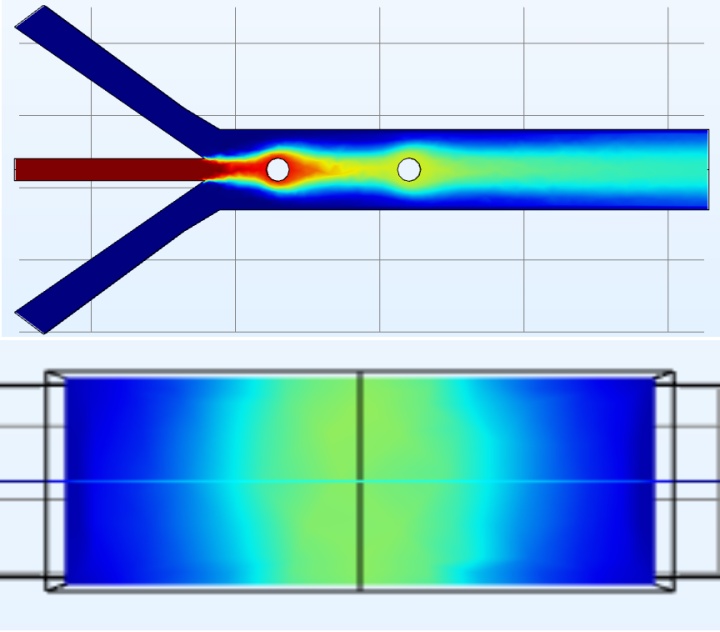

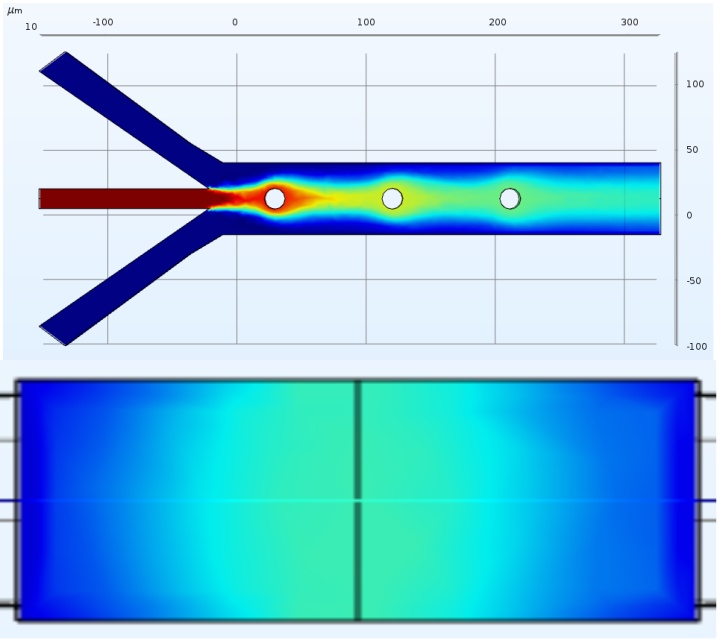

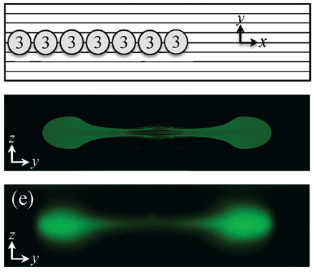

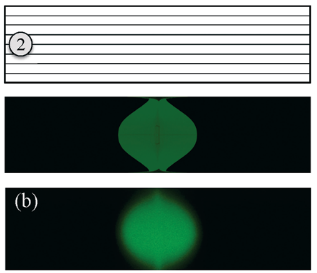

Hello, The problem I'm working on in the simulation is that the fluid deforms when it passes through the cylinder, using three inlets of inflow, colored with fluorescent dyes in the middle, so as to visualize it (Figures 1-4) and observe the flow deformation from the cross section. In COMSOL, I have used the laminar flow and transport of diluted species modules for the simulation, but the simulation results do not match the paper (Figure 5-7), does anybody know why this is happening? Best Regards!Bangfeng.



0 Replies Last Post 10 giu 2021, 03:53 GMT-4
COMSOL Moderator

Hello Bangfeng Wang

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
