help for building a model

Posted 5 gen 2011, 17:06 GMT-5 Low-Frequency Electromagnetics Version 4.0 6 Replies

Makhchan Abderrahim
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

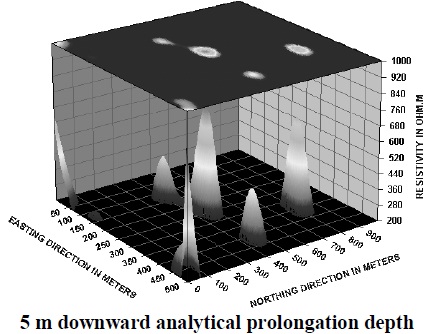

has some one any idea how can I drawing this model
thanks

Attachments:

6 Replies Last Post 9 feb 2011, 07:40 GMT-5
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 6 gen 2011, 01:14 GMT-5
Hi

check the forum (search) there are a few discussions how to use ALE to create a meshed volume from an analytical or piecewise / interpolated f(x,y) function

--
Good luck
Ivar
Hi check the forum (search) there are a few discussions how to use ALE to create a meshed volume from an analytical or piecewise / interpolated f(x,y) function -- Good luck Ivar
Makhchan Abderrahim
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 7 gen 2011, 13:47 GMT-5
tanks ivar,
but i dont have a Moving Mesh interface or a Deformed Geometry interface.
my geometry represent a layered earth witn inclusions wich have differents resistivities. On surface I assume a number of electrode. In each electrode, I inject current and I want to calculate the potential on the other electrodes.


tanks ivar, but i dont have a Moving Mesh interface or a Deformed Geometry interface. my geometry represent a layered earth witn inclusions wich have differents resistivities. On surface I assume a number of electrode. In each electrode, I inject current and I want to calculate the potential on the other electrodes.
Makhchan Abderrahim
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 12 gen 2011, 16:36 GMT-5
hye
Can I draw it with autocad then export my geometry to comsol?
please help
hye Can I draw it with autocad then export my geometry to comsol? please help
Rodger Evans
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 28 gen 2011, 15:29 GMT-5
Hi; which form is to be checked. I've been going through the COMSOL Discussion Form and haven't found anything yet.

cheers



Hi

check the forum (search) there are a few discussions how to use ALE to create a meshed volume from an analytical or piecewise / interpolated f(x,y) function

--
Good luck
Ivar


Hi; which form is to be checked. I've been going through the COMSOL Discussion Form and haven't found anything yet. cheers [QUOTE] Hi check the forum (search) there are a few discussions how to use ALE to create a meshed volume from an analytical or piecewise / interpolated f(x,y) function -- Good luck Ivar [/QUOTE]
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 29 gen 2011, 10:34 GMT-5
Hi

take a look here

www.comsol.eu/community/forums/general/thread/4508/

hope this is what you want

--
Good luck
Ivar
Hi take a look here http://www.comsol.eu/community/forums/general/thread/4508/ hope this is what you want -- Good luck Ivar
Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 9 feb 2011, 07:40 GMT-5
Here is a 3D example.

Niklas
Here is a 3D example. Niklas

Attachments:
