Bending Pipe

Application ID: 1377

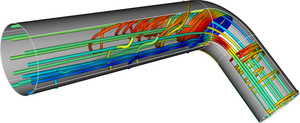

This model studies the fluid flow through a bending pipe in 3D for the Reynolds number 300 000. Because of the high Reynolds number, the k-epsilon and the k-omega turbulence models are used. Calculations with and without corner smoothing are performed. The results are compared with experimental data.

Questo modello è stato realizzato con:

CFD Module
