Capacitance in a Microstrip

Model ID: 966

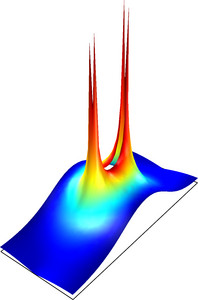

To illustrate how to calculate lumped parameters of capacitance, this model calculates such in a microstrip.

The example shows the two different ways of calculating this: with a static analysis and with a time-harmonic analysis.

Questo modello è stato realizzato con:

AC/DC Module
